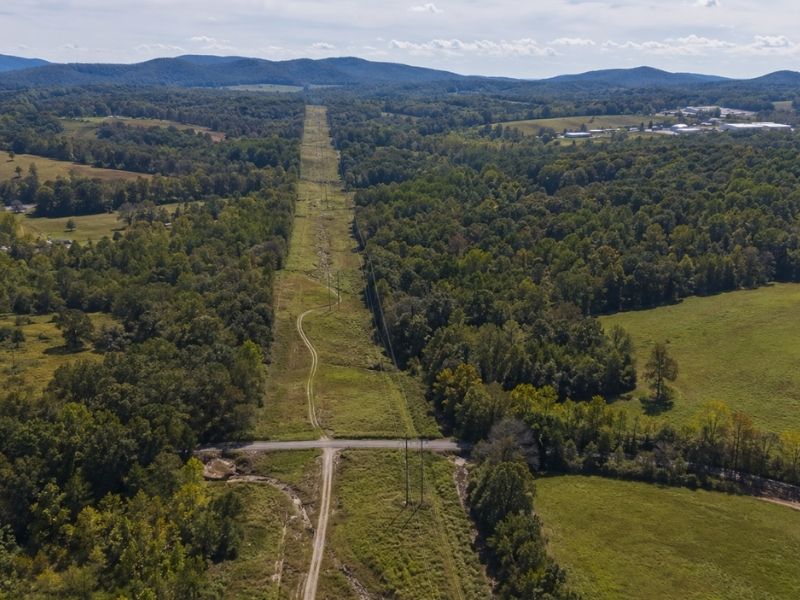

A new utility corridor does not follow one property line. It crosses many parcels of land. It crosses roads and creeks too. It has to work as one route from start to finish. Land mapping drones let planners see that whole route at once. They do this much faster than old ground methods. Used the right way, drones turn a long, broken-up study area into one clear set of data. That data is something everyone on the project can trust.

Define a Continuous Mapping Band Across the Proposed Utility Route

Before a drone flies, the survey team sets the mapping band. This is the width and length of the area that needs coverage. It follows the proposed centerline. It does not cover land the project will never touch. The band needs a buffer on each side. That buffer must catch grading, access points, and nearby obstructions.

Branches and connection points get mapped the same way. Say the corridor splits to reach a substation. Or say it ties into an existing line. That branch becomes its own segment inside the band. The team plans it before the flight. They do not add it after the fact. This keeps the final data set even across the whole route. A gap in coverage at a branch point causes problems. Planners end up guessing at ground conditions instead of measuring them. That defeats the point of mapping the corridor at all.

Setting the band also means picking flight start and stop points early. A corridor that runs for miles cannot be flown in one pass. The team breaks it into sections. They base this on drone battery life, launch site access, and terrain. Each section overlaps a bit with the next one. This way, nothing gets missed where two sections meet.

Maintain Survey Control Across Long Drone Flight Segments

Once a corridor is split into flight segments, a harder problem comes up. All those segments need to sit in the same coordinate system. Say two sections get flown an hour apart, from different launch points. They still must line up as if flown in one pass. That only happens with ground control.

Survey crews set ground control points, called GCPs, at known spots before flying. Then they place independent checkpoints, kept separate from the GCPs. The checkpoints do not build the map. They test it. Once the drone data is processed, the crew checks the finished map against those checkpoints. This shows how close the map really is to the true ground. Current standards from groups like the U.S. Geological Survey call for this kind of check. Relying on the equipment’s stated accuracy alone is not enough.

This step matters most where segments join. Small errors on a short project might not show up at all. Stack several segments across miles of corridor, though, and small errors start to add up. Testing accuracy at each checkpoint keeps a long corridor map reliable end to end. Assuming that accuracy is not enough.

Document Surface Crossings and Corridor Pinch Points

A proposed corridor will run into obstacles. Roads, rail lines, streams, buildings, and tight gaps between properties all show up somewhere along a regional route. Drone mapping is a fast way to record what these crossings look like on the ground. How wide is the road right-of-way? How close does a building sit to the proposed centerline? How does the creek bend through the study area? Drone data can answer these questions.

This record helps planners compare one route option against another. Say two route options both cross the same creek. The imagery and elevation data show which crossing is wider, steeper, or closer to existing buildings. This kind of side-by-side view speeds up early routing choices. It gives engineers real ground conditions to design around, not guesses.

What this data does not do is decide if a crossing gets approved. A rail crossing, a road bore, or a stream crossing still needs approval. That approval comes from the agency or owner in charge of it. Drone imagery records the physical setting. It does not stand in for a permit or an easement. It does not replace an agreement with the party that owns the crossing.

Separate Visible Utility Features From Buried Infrastructure

Aerial imagery is strong at showing what sits above ground. Poles, cabinets, manholes, valve covers, and survey markers all show up clearly in drone data. So do their exact locations. For a corridor project, this gives planners a real picture of the utilities already in place along the route. At least, the parts that are visible.

A drone cannot see through soil, though. Buried gas lines, fiber, water mains, and electric conduit do not show up in aerial imagery. It does not matter how sharp the camera is or how detailed the point cloud is. A manhole cover tells you a sewer line runs nearby. It does not tell you how deep that line sits or where it turns underground.

Because of this gap, corridor planning needs more than drone data alone. Utility owner records fill in some blanks. Field locates from a One Call request fill in more. Subsurface utility investigations cover the rest. Treating a drone map as full underground information is a mistake. That mistake often shows up later, during construction, when a crew hits something the map never showed.

Coordinate Flight Logistics Before Mapping a Regional Corridor Near Ringgold

A corridor that runs for miles near Ringgold will not launch from one field and finish in a single flight. The route crosses many properties. So the crew needs access arranged with each landowner ahead of time, not worked out on the fly. Weather adds another layer too. Wind, visibility, and temperature all affect flight quality. A long corridor may need several flight days spread across different conditions to finish the whole route.

Airspace matters just as much as ground access. Commercial drone flights in the U.S. generally fall under FAA Part 107. This rule sets pilot certification, altitude limits, and flight conditions. Parts of a regional corridor may sit inside controlled airspace. That airspace needs its own authorization before a drone can fly there. A UAS Facility Map shows the max altitude the FAA has pre-approved. But that map alone does not grant permission to fly. Crews still need the right authorization for controlled airspace along the route.

Getting this logistics work done early keeps a corridor project on schedule. A crew that shows up without landowner access loses days. The same goes for a crew with no weather plan or no airspace authorization. Planning these pieces early is what turns a drone survey into a finished, usable set of data.
