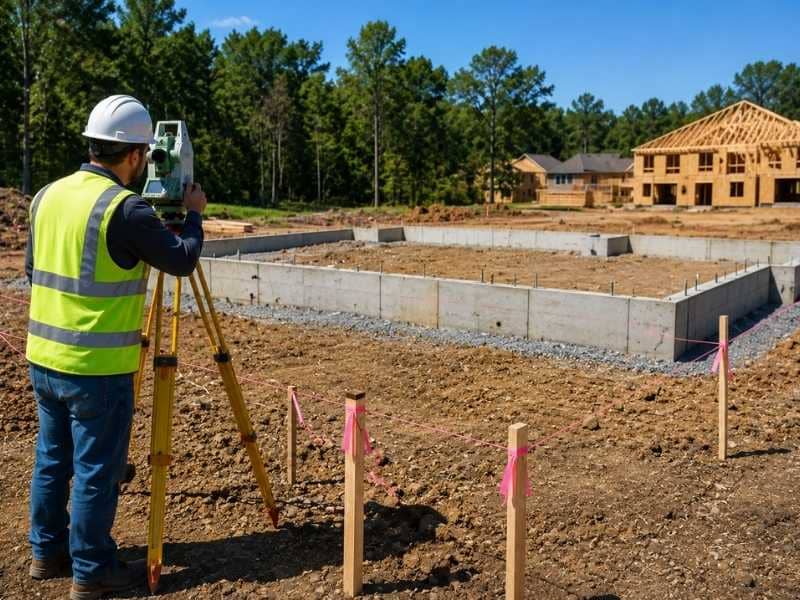

Before framing begins, builders need to know the foundation is in the correct location and built according to the approved plans. A construction surveyor performs layout checks to verify the building’s position, dimensions and elevations before additional work continues. Finding problems at this stage helps prevent costly rework and keeps the project on schedule.

Why a Layout Check Comes Before Framing

Before the first wall goes up, a construction surveyor confirms that the layout matches the approved plans. This check catches costly mistakes while they’re still easy to fix. Once framing starts, correcting a misplaced foundation gets far more expensive and slows the whole job.

A build moves fast in the early stages, and small errors hide easily. A foundation poured a foot off, a corner out of square or a wrong elevation can slip by an untrained eye. A surveyor measures against the plans and flags any of these before they get buried under lumber.

Builders who verify the layout first protect their schedule and their budget. It’s a short step that prevents the kind of rework that eats profit. Skipping it is a gamble that rarely pays off.

Confirm the Foundation Matches the Plans

The foundation sets the position for everything above it, so a construction surveyor checks it closely. They confirm the foundation sits in the right spot on the lot and matches the size and shape on the plans. A foundation that’s off, even slightly, throws off every wall, door and roofline that follows.

Squareness matters just as much as position. A surveyor measures the corners and diagonals to make sure the foundation is truly square, not just close. Out-of-square work causes gaps and alignment headaches once framing begins.

The check also confirms key dimensions. The surveyor compares wall lengths, offsets and openings to the plans while changes are still cheap. Catching a wrong measurement now saves a painful fix later.

Check Setbacks and Property Lines

A building has to sit within the legal limits of the lot, and a construction surveyor confirms it does. They check the structure against the property lines and required setbacks, the minimum distances a building must keep from each edge. A foundation too close to a line can trigger fines, delays or even a forced teardown.

This check protects the builder from a serious problem. Setback rules come from local codes, and inspectors do enforce them. Confirming the placement early means the build stays legal from the ground up.

The same review flags easements on the lot. If a utility strip or access lane runs through the property, the surveyor makes sure the structure stays clear of it. Building over an easement is a mistake that’s expensive to undo.

Verify Elevations and Floor Heights

Getting the heights right is just as important as getting the position right. A construction surveyor checks the elevations to confirm the foundation and floors sit at the levels the plans call for. An error here can leave a home too low for proper drainage or out of step with the street.

Elevation checks tie the build to a fixed reference:

• The finished floor height against the plan
• The foundation level across all corners
• The slope for drainage away from the structure
• The height relative to the road or nearby grade

A home set too low can collect water or fail an inspection, while one set too high can look and function wrong. Checking these levels before framing keeps the whole structure at the right height from the start.

How Early Checks Keep a Build on Track

A layout check before framing does more than catch errors. It keeps the entire project on schedule and on budget. When the surveyor verifies the base is correct, every trade that follows can work with confidence instead of building on a question mark.

Rework is the enemy of any build. Tearing out framing to fix a foundation problem costs days of labor and materials, and it pushes back every task behind it. One early check can prevent that whole chain of delay.

Clean layout work also smooths inspections. When the placement, dimensions and elevations all match the approved plans, inspectors have less to question. That keeps approvals moving and the crew building instead of waiting.

Frequently Asked Questions

What does a construction surveyor check before framing?

A construction surveyor confirms the foundation’s position, size and squareness against the plans. They also check setbacks, property lines, easements and elevations. The goal is to prove the base is correct before any framing goes up.

Why verify the layout before framing starts?

Because errors are cheap to fix before framing and expensive after. A misplaced or out-of-square foundation affects every wall and roofline above it. Catching the problem early protects both the schedule and the budget.

Can a layout error be fixed after framing?

It can, but the cost climbs fast. Fixing a foundation or placement problem after framing often means tearing out finished work. That’s why builders check the layout before the framing stage, not during it.

Do construction surveyors check elevations?

Yes. They confirm the foundation and floor heights match the plans and tie the build to a fixed reference point. Correct elevations keep a home draining properly and level with the surrounding grade.

When should a builder call a construction surveyor?

Early, and at key stages of the build. Many builders bring one in after the foundation and before framing, so any problem surfaces at the cheapest moment. A surveyor may also return for later checks as the project moves along
